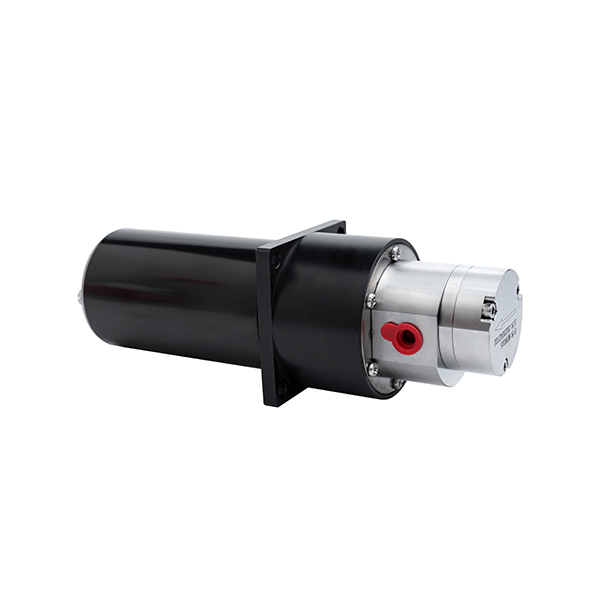

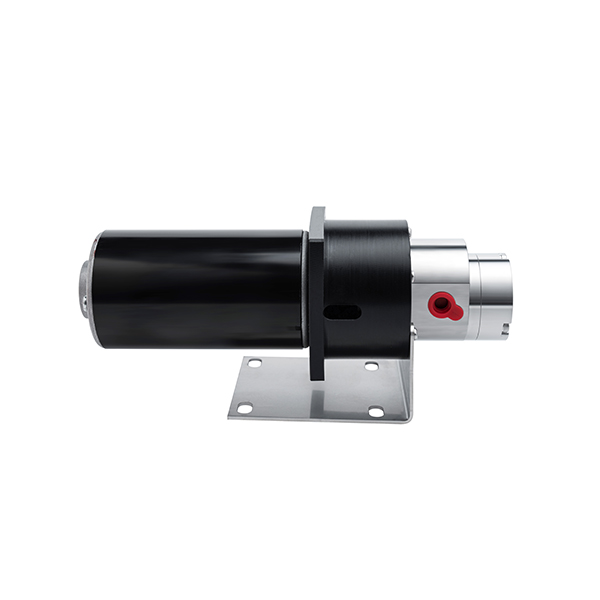

MPB015 Micro Magnetic Drive Gear Pump With Brushed DC 60W Motor
MPC015 Magnetic Drive Gear Pump is powered by DC brushed motor, reach 1-1.5L/M flow rate, 0.5-20bar outlet pressure resistance.suitable for the control of precision and efficiency requirements of the scene is not high.
- No pulse
Through the gears to provide continuous accurate fluid transportation,with servo and stepper motr delivery accuracy of +/-0.5%. - Strong vacuum suction capacity
High and Stable Conveyance Pressure.High pressure delivery in low viscosity liquids. - No leakage
Magnetic drive and static O-ring seal can ensure that the medium in the pump is isolated from the outside world to achieve no leakage. - Cost-effective
Brushed motors have a relatively simple structure, mature manufacturing process and low production costs. - Easy operation
Brushed motors control speed and steering by voltage regulation, the control system is very simple.
Micro Gear Pump Descriptions
The MPB015 magnetic drive gear pump with 60W brushed DC motor has a simple and efficient design. Due to the simple structure of the brush DC motor, cost-effective, easy to operate and does not rely on complex feedback system, suitable for the control of precision and efficiency requirements of the scene is not high.
MICRO GEAR PUMP Model Specification
| Model | MPB | 015 | B | A | A | B | 24V | 60W |
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| 1 | Pump Series | MPB: Rubber O-Ring Seal MPC: PTFE gasket seal MPD: Direct Drive (non-magnetic) | ||||||
| 2 | Flow | 0-1.5L/min | ||||||
| 3 | Pump Body | A：304； B：316L； C：PPS； D：Hastelloy; E: Titanium alloy | ||||||
| 4 | Gear/Shaft | A: Gear PEEK+ shaft 316L B: Gear PEEK+ shaft ceramic C: Gear PEEK+ shaft tungsten steel D: Gear PEEK+shaft titanium alloy | ||||||
| 5 | Inlet/Outlet Thread | A: G1/8 B: G1/4 C: G3/8 D: G1/2 E: G3/4 F: G1 ” G: G1″1/4 H: M5 X: other customzations; (Letter: tooth) 1:25.4 2:34 3:38 4:50.5 5:640: Other customizations (Number: Chuck) | ||||||
| 6 | Motor | A：BL( DC Brushless Motor) B：DC(DC Brushed Motor) C：SM(Stepper Motor) D：SVCA （Servo Motor） E：ACIM 3 Phase Asynchronous Induction Motor F：ACIMB （Explosion -Proof 3 Phase Asynchronous Motor） G：BLB （Explosion Proof Brushless DC Motor） | ||||||
| 7 | Voltage | 12V/24V / 48V / 220V / 380V | ||||||
| 8 | Power | 30W/40W/60W/70W/80W/100W/110W/150W/200W/250W/300W/370W/400W/550W/750W/1000W | ||||||
MICRO GEAR PUMP Technical Paramaters
| Model | Medium Viscosity | Medium Temperature | Pressure Difference | Inlet vacuum level | Motor | Motor Speed |
| MPB015BAAB24V60W | 0~3000cps | -30℃~120℃ | 20Bar | -0.85Bar | 60WDC | 500~6000rpm |
